iSocket Environment Pro

A solution for precision temperature monitoring for any environment, security and safety monitoring for your home or office and power failure monitoring

Are you from United States of America? Please check this product with plug and socket which might be better suitable for your country.

Buy iSocket 3G

iSocket Environment Pro is designed for remote monitoring of the environment in your premises to give you peace of mind. This intelligent socket is controlled remotely by SMS-commands via the GSM network. You can use either standard mobile phones (“old” phones) or smartphones to manage and configure iSocket. It is also possible to carry out some operations by a phone call. SIM-cards from most GSM-operators, including prepaid cards, can be installed in iSocket.

The following aspects of the environment can be monitored with iSocket.

  • Temperature monitoring. With its precision external waterproof sensor you can now measure the temperature of almost any element: air, water, oil or solid surfaces in close proximity or remote from the unit. Information about temperature will be sent to your cell phone. iSocket will notify you when the temperature rises beyond or falls below specified levels. iSocket has a thermostat that turns equipment on and off according to your settings. Unique features of iSocket® Smart Software will allow you to create an advanced temperature monitoring system that no other product on the market provides.
  • Security and safety monitoring. With a motion and/or door opening sensor connected to the input of iSocket Environment Pro you can create a simple home alarm system in a few minutes! An alert about a break-in will be sent to your cell phone immediately. You may connect various logical sensors to the input of the iSocket to monitor the safety environment to detect e.g. smoke (fire), water leaks or gas leakage. The alert will be sent to your cell phone when something happens. We manufacture pre-wired sensor sets for simple installation. You do not need specific skills to configure these features.
  • Power monitoring. You will get an alert to your cell phone when the power fails or is restored. This is possible because the iSocket Environment Pro has a built-in battery. You do not need to buy any extra accessories to activate this feature. Advanced high quality Li-ion battery (unlike weak batteries or supercapacitors in other inferior products) ensure that you get a notification even if there is a break in the network.

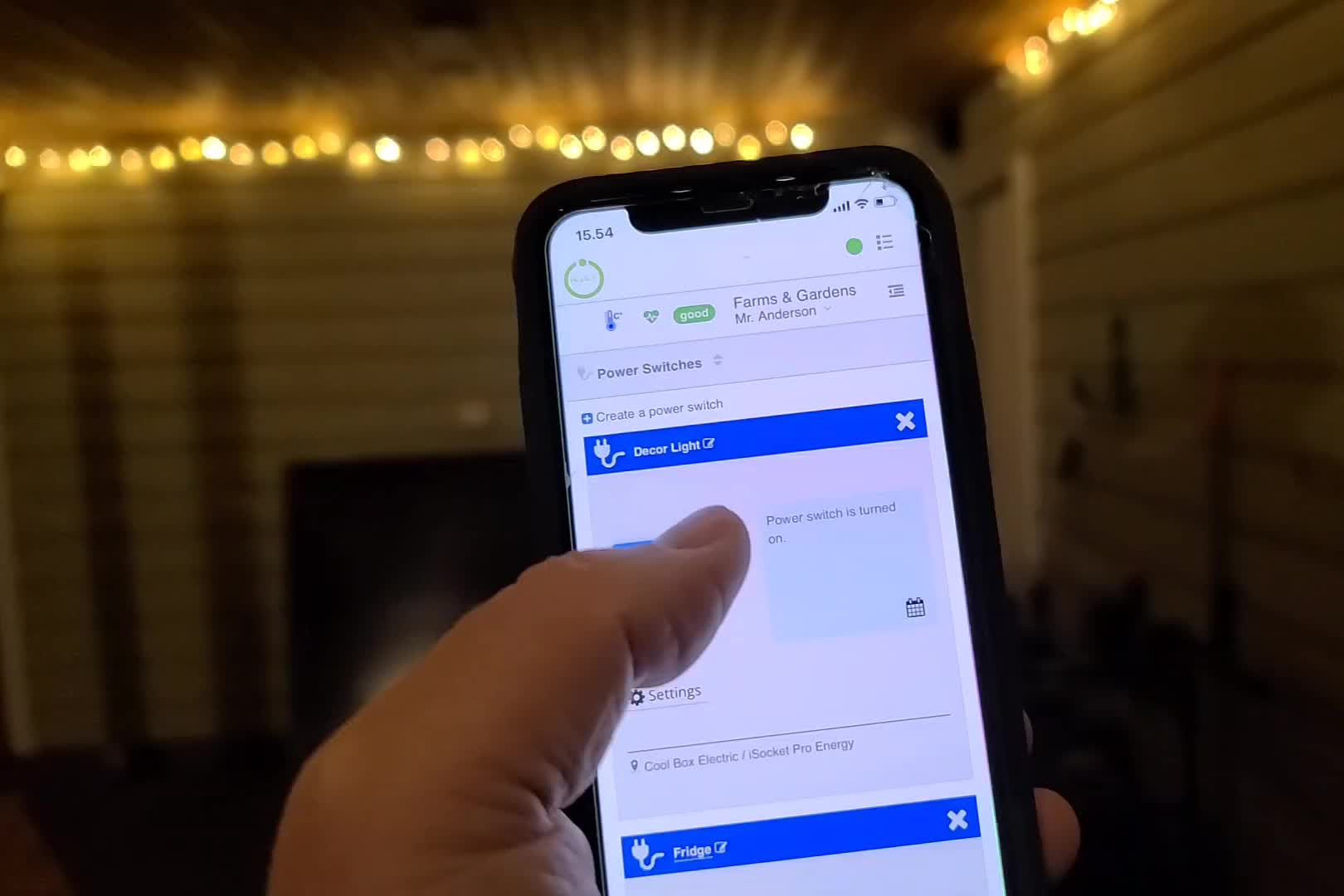

Remote switching and reboot. And of course iSocket supports remote switching and reboot of equipment connected to it. You will definitely appreciate the elegant design of iSocket with plugs and sockets suitable for many countries!

No service fee. We do not charge you monthly fees! You pay for the equipment once up front and then you are free to choose subscriptions from your favorite GSM mobile operator or to use prepaid (Pay-As-You-Go) cards.

Free of charge operations. Some operations (e.g. remote switching or reboot) can be performed by a call to iSocket and you can configure them to be absolutely free! Thus you may reboot your computer or modem remotely for free.

Check all features in the new User Manual.

iSocket

iSocket for power outages monitoring in the United States and Canada

A small cost for the peace of mind and comfort that iSocket gives you.

Remember, the cost of the damage from a power outage can be considerably more than the cost of a solution that will send you power outage notifications. And remember, power failure alerting is not the only feature iSocket offers you.

Technical Data & Features of iSocket 3G

Product name:
  • iSocket 3G
Model
  • IS3GUS
Socket/Plug
  • NEMA 5-15, North America
Main Applications

  • Alerts about power outages / power restore: text, voice to your mobile phone or by email
Built-in rechargeable battery

  • iSocket® Power Notifier - a feature which will notify you in the event of a power outage or when the power is restored
  • Li-ion or Li-po high quality batteries with excess capacity cater for signal delays in the event of a break in the mobile network before sending the power outage alert
  • Charging from internal charger about 10 hours if totally discharged
Safety and security monitoring systems that you can build with this model

(with notification to your mobile phone)
  • Power loss notification system
  • Remote on/off reboot system
  • Power failure alarm
Temperature Control Features

  • iSocket® Temperature Notifier - notifies you in the event of the room temperature falling below or rising above critical levels
  • Thermometer: temperature measurement
  • Thermostat: turn on/off equipment by thermostat's settings
Power Input (Supply Voltage)

  • 110-240VAC, 50-60Hz
Power Consumption

  • Stand-by power ~1W, Green Power
Output Relay

  • Remote turn on/off or restart of 120VAC/240VAC appliances
  • Delayed start/stop, turn on/off for a certain period
  • Scheduling turn on/off
  • Max. switching rating 16A at 250VAC, protected with fuse
Power Rating

  • Max. rating 2000W (16A at 120VAC); 4000W (16A at 250VAC); continuous resistive load
  • Nominal rating 1800W; 3600W for 230VAC
Input for External Temperature Sensor

  • Mini-jack 2.5mm connector on the rear of the device
  • Support sensors from the original manufacturer, which are water-proof, with measurement limits from -55C(-67F) to 120C(248F) and ±0.5°C accuracy from -10°C to +85°C
Scheduler

  • Scheduling some functions to be executed at a particular time
  • Scheduling turn on/off relay
  • Scheduling sending status information
Security

  • Three security levels: password, list of phone numbers, limited configuration interval
  • Support several security numbers to limit acces to management and configuration
Free of charge operations

  • Unique feature of iSocket® Smart Software which allow you to perform some operations, e.g. remote switching or reboot, absolutely free (no fee for a call or SMS)
  • No service fee to manufacturer or dealer
Mobile Network

  • 4-band worldwide GSM 850MHz/900MHz/1800MHz/1900MHz
  • Support for 3G networks
  • iSocket® Online 24/7 - gets the device back online even after a break in the mobile network
  • Automatic date and time synchronization from mobile network
Type of antenna

  • Integrated
SIM socket & SIM cards

Hidden Button

  • For manual switching of main relay and for reset to factory defaults
Indicators

  • POWER green
  • ONLINE blue
  • OUT red
Configuration and Management

  • SMS control and configuration with traditional "old" phones
  • Management through apps for smart phones
  • FOTA (Firmware Over The Air)
iSocket® Smart Commands

  • ALERTME
  • MAKEMEBOSS
  • RUNTIME
Applications for Smartphones

Operation Conditions

  • Indoor use, dry conditions
  • 0C – +30C (32F – 86F) *According to certifications (official range)
  • -15C – +40C (5F – 104F) *According to experience
Store Conditions

  • -30C – +50C (-22F – 122F)
Certificates

  • FCC compliance
Warranty

  • 1 year (for some countries 2 or 3 years)
European Manufacturer

  • Designed and manufactured in Finland
